Gears,Racks And Others

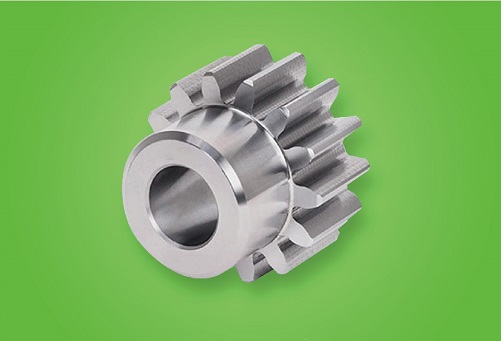

Spur Gears

Spur Gears

A spur gear is a gear that transmits power between two parallel axes
and is the most common type of gear.
Because the tooth surface is parallel to the axis of rotation,
a spur gear does not generate axial thrust during operation.
Additionally, spur gears are easy to manufacture,
which allows for the production of highly precise gears.

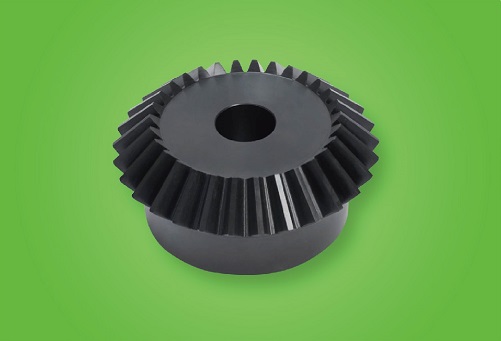

Bevel Gears

Bevel Gears

A bevel gear is a type of gear used in machinery to transmit power
and motion between intersecting shafts.
It has a conical shape and the teeth are cut at an angle to the gear's axis.
The angle of the teeth is typically 90 degrees
but can vary based on the application.

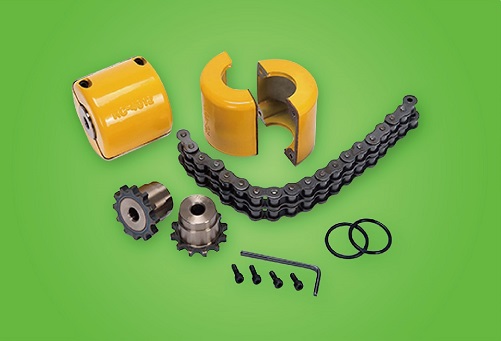

Chain Couplings

Chain Couplings

Chain coupling is a coupling that composed of two rows of roller chains
and two sprockets that engaged with them.
One end of the chain is equipped with a joint pin which can be inserted or
pulled out freely. It helps to simplify the connection and disassembly.
Along the direction that perpendicular to the shaft,
the cover can be separated into two parts.
V-grooves are set on both sides of the cover of KC3012- KC8022,
and 0-rings are installed to prevent oil leakage.

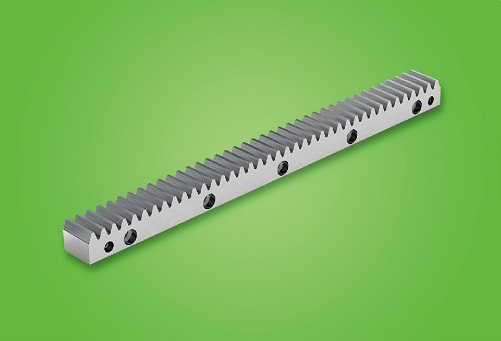

Racks

Racks

MTD offers any cross-section up to module 20 with metric or module pitch,
with helical or straight gears. The maximum single piece length is 3000mm,
multi-piece butt jointed rails for longer lengths are warranted.
Straight-toothed gear racks are available in standard industrial sizes
from module 2 to module 12. The material,
hardness, and accuracy determine the respective load.

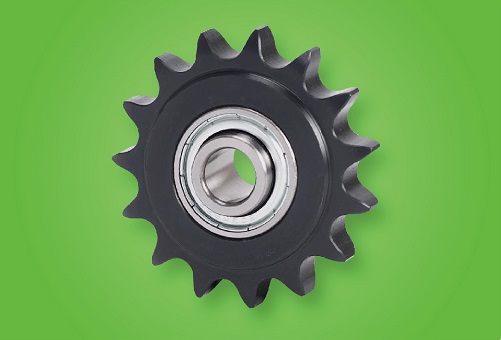

ldler Sprokets

Ldler Sprokets

An idler sprocket is a type of sprocket that is used
in power transmission systems to maintain tension in a chain or belt drive.
It is a free-spinning sprocket that is not connected to any power source,
but is instead used to guide and support the chain or belt,
preventing it from becoming slack or coming off the drive sprocket.

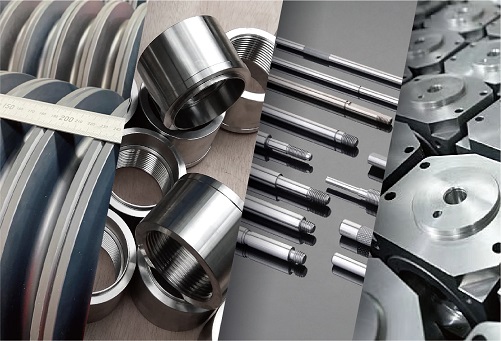

Special Products To Drawing

Special Products To Drawing

Benefit from our decades of international experience in sourcing
an almost unlimited selection of special parts, manufactured to drawing.

We supply turned and milled parts, cold and hot forged, pressed or laser cut.
Made of all common materials and with almost all possible surface treatments.

Our engineers and our team will be pleased to assist you
comprehensively from development to delivery.
MTD has been a reliable partner in numerous key industries for many years.
